Timer

Timer is a data type used to define an expiration date/lifespan of a specific entity.

Common timer usage

The timer property type can be used to store the future expiration date of catalog entities and properties, for example:

• Temporary development environment.
• Countdown to next healthcheck.
• Temporary cloud resources.
• Add temporary permissions to resource.

In this live demo example, we can see the TTL timer property. 🎬

API definition

Basic

{
  "myTimerProp": {
    "title": "My timer",
    "icon": "My icon",
    "description": "My timer property",
    "type": "string",
    "format": "timer",
    "default": "2022-04-18T11:44:15.345Z"
  }
}

Check out Port's API reference to learn more.

Terraform definition

Basic

resource "port_blueprint" "myBlueprint" {
  # ...blueprint properties
  properties = {
    string_props = {
      "myTimerProp" = {
        title       = "My timer"
        icon        = "My icon"
        description = "My timer property"
        format      = "timer"
        default     = "2022-04-18T11:44:15.345Z"
      }
    }
  }
}

Pulumi definition

Basic

Python

"""A Python Pulumi program"""

import pulumi
from port_pulumi import Blueprint,BlueprintPropertiesArgs,BlueprintPropertiesStringPropsArgs

blueprint = Blueprint(
    "myBlueprint",
    identifier="myBlueprint",
    title="My Blueprint",
    properties=BlueprintPropertiesArgs(
        string_props={
            "myTimerProp": BlueprintPropertiesStringPropsArgs(
                title="My timer",
                format="timer",
                required=True,
            )
        }
    ),
    relations={}
)

TypeScript

import * as pulumi from "@pulumi/pulumi";
import * as port from "@port-labs/port";

export const blueprint = new port.Blueprint("myBlueprint", {
  identifier: "myBlueprint",
  title: "My Blueprint",
  properties: {
    stringProps: {
      myTimerProp: {
        title: "My timer",
        format: "timer",
        required: true,
      },
    },
  },
});

JavaScript

"use strict";
const pulumi = require("@pulumi/pulumi");
const port = require("@port-labs/port");

const entity = new port.Blueprint("myBlueprint", {
  title: "My Blueprint",
  identifier: "myBlueprint",
  properties: {
    stringProps: {
      myTimerProp: {
        title: "My timer",
        format: "timer",
        required: true,
      },
    },
  },
  relations: {},
});

exports.title = entity.title;

GO

package main

import (
	"github.com/port-labs/pulumi-port/sdk/v2/go/port"
	"github.com/pulumi/pulumi/sdk/v3/go/pulumi"
)

func main() {
	pulumi.Run(func(ctx *pulumi.Context) error {
		blueprint, err := port.NewBlueprint(ctx, "myBlueprint", &port.BlueprintArgs{
			Identifier: pulumi.String("myBlueprint"),
			Title:      pulumi.String("My Blueprint"),
			Properties: port.BlueprintPropertiesArgs{
				StringProps: port.BlueprintPropertiesStringPropsMap{
					"myTimerProp": &port.BlueprintPropertiesStringPropsArgs{
                        Title:    pulumi.String("My timer"),
                        Format:   pulumi.String("timer"),
                        Required: pulumi.Bool(true),
                    },
                },
			},
		})
		ctx.Export("blueprint", blueprint.Title)
		if err != nil {
			return err
		}
		return nil
	})
}

Example

Here is an entity for a timerExample blueprint which has a timer property with the identifier timer.

In the example entity, an expiration datetime is specified:

  "identifier": "entityIdentifier",
  "title": "Timer Example",
  "icon": "Microservice",
  "blueprint": "timerExample",
  "properties": {
    "timer": "2022-12-01T16:50:00+02:00"
  },
  "relations": {}

Looking at Port's UI, we can see that the timer we created expires in 2 hours:

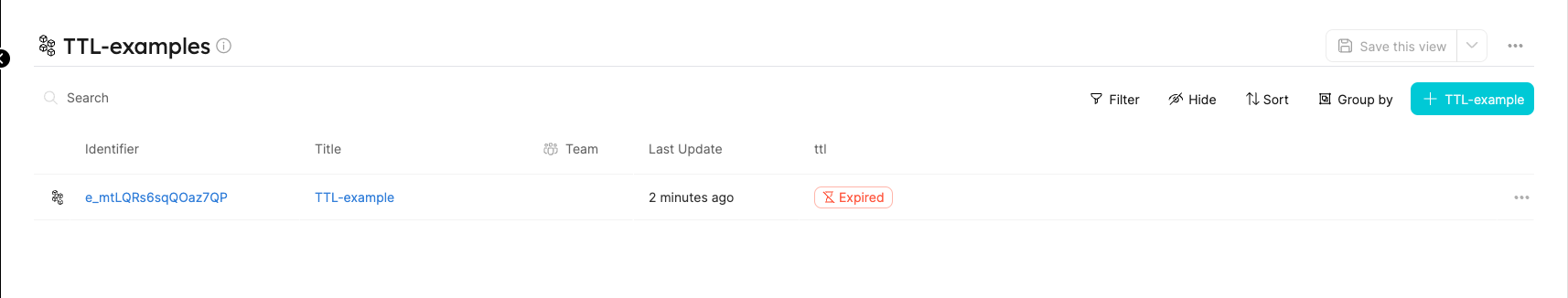

After 2 hours pass, the property status will change to Expired, and an event of Timer Expired will be sent to the ChangeLog:

The timer expiration event will also appear in Port's audit log:

In order to notify about the timer expiration, the following notification body will be sent to the Webhook/Kafka topic configured in the blueprint's changelogDestination:

{
  "context": {
    "blueprint": "timerExample",
    "entity": "entityIdentifier"
  },
  "action": "TIMER_EXPIRED",
  "trigger": {
    "at": "2022-12-01T16:50:00+02:00",
    "by": {
      "byPort": true,
      "orgId": "org_example"
    },
    "origin": "API"
  },
  "resourceType": "entity",
  "status": "SUCCESS"
}
